朝铨前推式筒夹夹头 产品尺寸图下载

24小时咨询热线 400-688-0096

型号： CPD-5CA5/CPD-5CA6/CPD-16CA5/CPD-16CA6/CPD-16CA8
尺寸： 137/158/218
配套气缸或者油缸：

朝铨前推式筒夹夹头CPD-5CA5/CPD-5CA6/CPD-16CA5/CPD-16CA6/CPD-16CA8，产品规格及详细参数

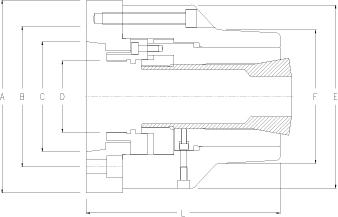

筒夹夹头尺寸及性能规格 - A2法兰



型号	CPD-5CA5	CPD-5CA6	CPD-16CA5	CPD-16CA6	CPD-16CA8
主轴鼻端	A2-5	A2-6	A2-5	A2-6	A2-8
A	137mm (5.39")	158mm (6.22")	137mm (5.39")	158mm (6.22")	218mm (8.58")
B (安装螺丝孔)	104.8mm (4.13")	133.4mm (5.25")	104.8mm (4.13")	133.4mm (5.25")	171.4mm (6.75")
C	82.6mm (3.25")	106.4mm (4.19")	82.6mm (3.25")	106.4mm (4.19")	139.7mm (5.50")
D (拉管牙径)	M73 x P1.5	M73 x P1.5	M91 x P1.5	M91 x P1.5	M91 x P1.5
E	137mm (5.39")	137mm (5.39")	137mm (5.39")	137mm (5.39")	137mm (5.39")
F	100mm (3.94")	100mm (3.94")	100mm (3.94")	100mm (3.94")	100mm (3.94")
L	122mm (4.80")	125mm (4.92")	145mm (5.71")	145mm (5.71")	160mm (5.71")
工作弹性筒夹	5C (最大夹径26mm)	5C (最大夹径26mm)	16C (最大夹径40mm)	16C (最大夹径40mm)	16C (最大夹径40mm)
最大夹持径	26mm (1.02")	26mm (1.02")	40mm (1.57")	40mm (1.57")	40mm (1.57")
最大允许拉杆推力	1800kgf (3900lbf)	1800kgf (3900lbf)	2300kgf (5060lbf)	2300kgf (5060lbf)	2300kgf (5060lbf)
最高转速RPM	6000	6000	5000	5000	5000
产品净重	8.0kgs (17.6lbs)	9.0kgs (19.8lbs)	10.0kgs (22.0lbs)	12.0kgs (26.4lbs)	18.0kgs (39.6lbs)
