同类产品
特征：
• 性能好、精度高 - 此卡盘与CAS型卡盘结构相同，因此确保其优越的性能和质量，且附件和连接部件具有兼容性。
• 直接安装型 - 可直接安装在符合国际标准A型主轴的短锥安装面上。
规格表
|
Spec
Model
|
Order NO. | Spindle nose NO. | Jaw stroke(Diameter) mm | Plunger stroke mm | Gripping Max | Gripping Min | Max. permissible input force KN(kgf) | |
| CASLF-32 | 1ASLF32 | - | 30.6 | - | 38 | 800 | 211 | 120(11760) |
| CASF-40HC | 1ASG40HC | - | 46 | 30 | 57 | 1000 | 187 | 180(18348) |
|
Spec
Model
|
Max. static gripping force KN(kgf) | Max. Permissible speed r.p.m | weight(With standard soft jaws) | Gd moment of inertia | matching cylinder | Matching hard jaw | Matching soft jaw | |
| CASLF-32 | 215(21070) | 650 | 341 | 23.8(2.43) | YAS,C,P,T-200 | HJ-32A1 | SJ-32A1 | |
| CASF-40HC | 320(32653) | 500 | 710 | 91(9.28) | YAST-245, YAST-250S | HJ-40A2 | SJ-40A2 |

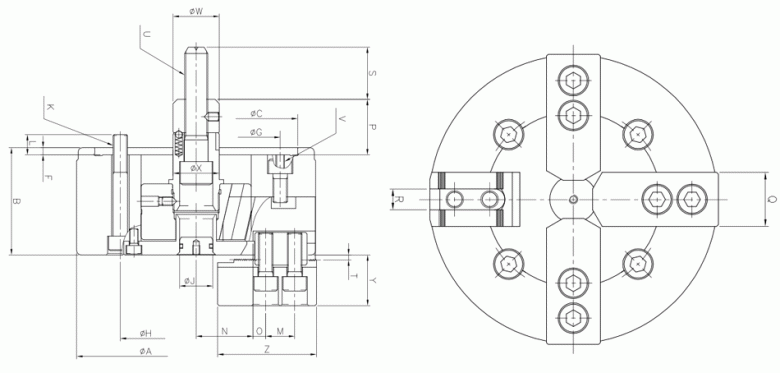

尺寸表
|
Item
Model
|
A | B | C | F | G | J | K | L | M | N Max | N Min | O Max |
| CASLF-32 | 800 | 150 | 380 | 6 | 330.2 | - | 8-M24 | 31 | 76.2 | 101 | 85.7 | - |
| CASF-40HC | 1000 | 180 | 520 | 8 | 463.6 | - | 8-M24 | 32 | 76.2 | 207 | 154 | - |
|
Item
Model
|
O Min | P Max | P Min | R | S | T | V | W | X | Y | Z | ||
| CASLF-32 | - | 35 | -3 | 25.5 | 60 | 8 | M30X3.5 | - | 52 | 114 | 83 | 165 | |
| CASF-40HC | - | 32 | -25 | 30 | 68 | 0 | M36X4.0 | - | 60 | - | 110 | 270 |
